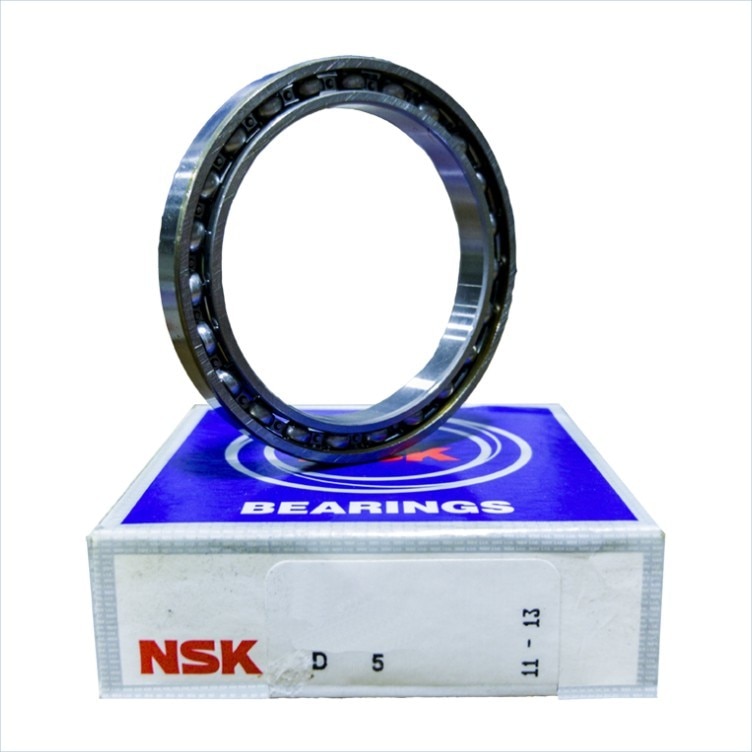

6936M - NSK Thin Section - 180x250x33mm
Introduction
This 6936M bearing is a Open Type Thin Section Deep Groove Radial Ball Bearing with a Machined Brass cage, this bearing also has a standard radial internal clearance. The bearing's dimensions are 180x250x33.
6936M - NSK Thin Section - 180x250x33mm
6936M
Metric, Very Thin Section180mm - Bore SizeBrass CageNormal Internal Clearance

Product Information

Brand:
NSK Brands


SKU:
6936m-nsk


Availability:
In Stock


Weight:
4.16 KGS


Technical Data

Inside Diameter (mm):
180mm


Outside Diameter (mm):
250mm


Width (mm):
33mm


Dynamic Load Rating (kN):
119


Static Load Rating (kN):
128


Grease Limiting Speed (r/min):
2200


Oil Limiting Speed (r/min):
2600
